To increase the adaptability of our palletizing solutions, we continually build and improve our robotic designs and control systems. Our Palletizing Solutions are useful in manufacturing because of their speed and accuracy. They eliminate the risk of errors and injury and do the job safely. Many companies choose our systems for their ability to function in hazardous environments. Not to mention, our clients have saved costs by not having to hire additional workers.

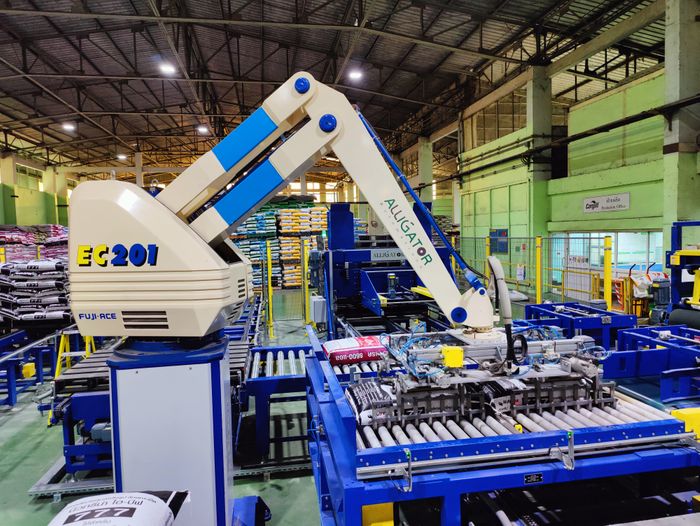

Robotic Palletizing: Robotic palletizing is an efficient alternative to its conventional counterpart, offering enhanced versatility and throughput. Our Robotic Palletizer offers improved efficiency, precision, and flexibility. We deliver complete solutions, ensuring your project is managed from start to finish by a single responsible source.

Gantry Palletizing: The Multi-Axis Gantry system picks up products from an infeed conveyor and places them in a specific pattern on pallets. It’s a cost-effective alternative to multi-axis robot palletizing. Our Gantry Palletizer handles heavy products with precision and speed. It’s designed to work with multiple inputs and outputs at controlled speeds, managing up to four placements per minute. This flexibility allows it to handle different container sizes with ease. It also enables easy removal of full pallets, either manually or automatically, with various conveyor or shuttle options. Adding a finger-style pallet dispenser and slip sheet dispenser makes the process even smoother. Its design pushes product rows onto a stripper plate, layering them onto the pallet. Each row is precisely placed, ensuring accuracy. Empty pallets come from the dispenser, and a slip sheet is added for stability. When full, the pallet moves onto a conveyor for easy transport. The Gantry Palletizer is designed for efficiency and ease, fitting perfectly into modern industrial environments.

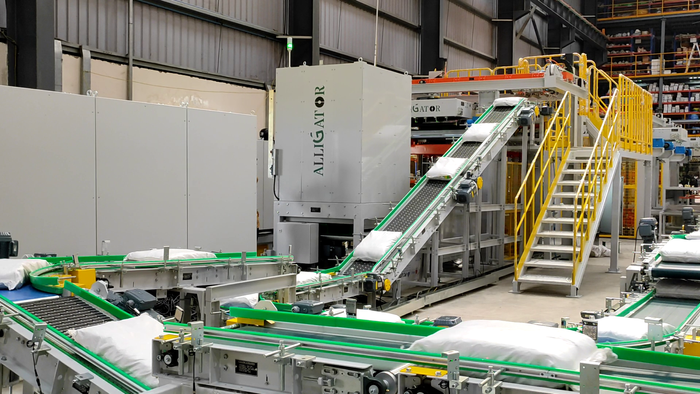

High-Level Palletizing: Our High-Level Push-Type Palletizer is sturdy, featuring a vertical frame that moves along a strong structure to support the pallet being built. An orienting device correctly positions bags from the filling line. They’re then arranged on a conveyor according to a set pattern, and each completed row moves to a holding area. When a layer is finished, a pusher moves it over trapdoors that drop it onto the pallet, compacting it tightly. Then, the doors open to place the layer on the pallet, and the frame lowers to start the next layer. Flexible and versatile, our palletizer comes with a PLC system that stores different stacking patterns to suit different needs. It also includes a platform for easy access, a magazine for empty pallets, and conveyors for moving pallets in and out, meeting rigorous EC standards.

Low-Level Palletizer: We specialize in Low-Level Palletizing. Here’s the premise behind the system—products on the infeed conveyor are rotated for correct orientation before reaching the row formation area. Completed rows are then pushed onto a layer-forming area, which might be a table, depending on the machine’s design. The fully formed layer advances to a plate and is either lowered or raised to align with the stationary pallet or previous layer. The process repeats until the palletization is complete. Finished pallets move to the elevated pallet discharge conveyor. From there, the palletized load is transported to storage. The cycle concludes when the pallet is removed from the conveyor.

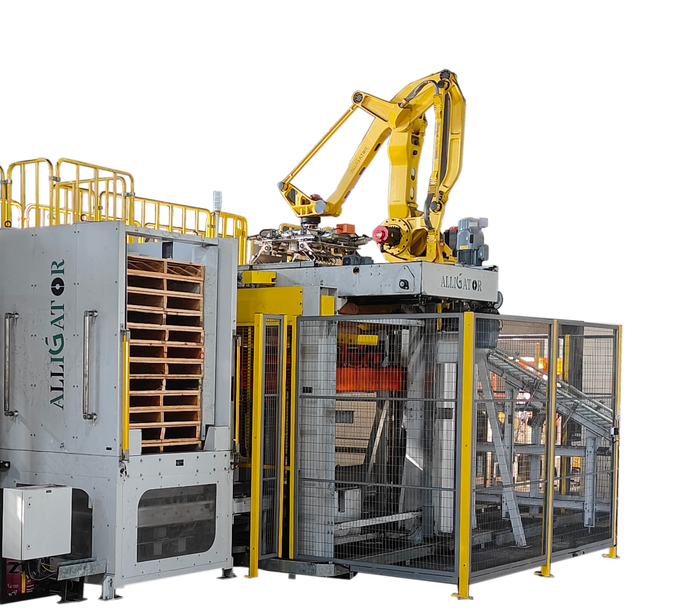

Hybrid Palletizer: A hybrid palletizer combines a robotic system with a high-level palletizer that has a compactor. In the setup, the robot carefully arranges a layer of products on a compactor table. Once the complete layer is moved onto the pallet for stable stacking. The system is particularly effective for stacking bags, ensuring they’re arranged securely through compaction. The upside of the hybrid palletizer lies in its flexibility. It can handle a wide variety of products and can easily adjust to different palletizing patterns. The hybrid palletizer provides a versatile and adaptable solution by combining the best features of both robotic and high-level palletizing systems, which has proven useful in various industries.
