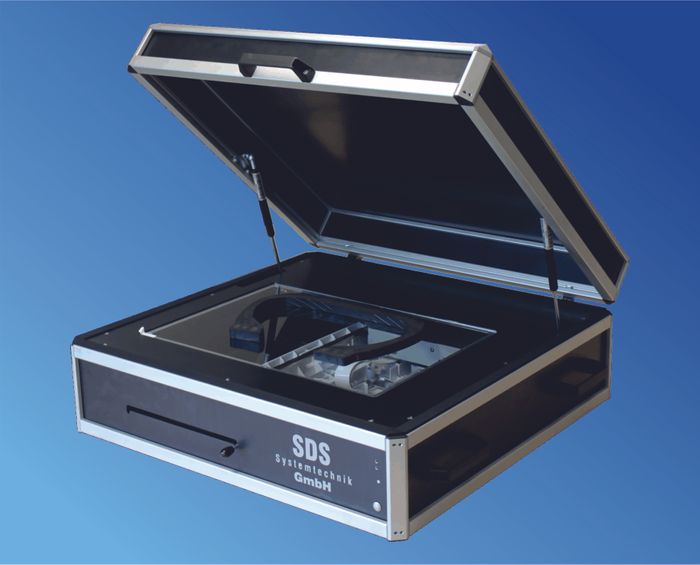

The Gamma-X series are designed to measure cross-sections of thick, dark

products like tire cross sections. Optimized flatbed scanners are used for easy,

fast and precise manual measurement. The scan units have high sensitive

measuring heads to detect small gray differences at the surface of the tire cross

sections.

The included software package is designed for manual dimensioning and

marking of objects measured by scanners or optional additional connected GigEcameras.

Also available are software package extensions for guided

measurements by predefined measurement tasks or for overlay of CAD drawings

onto the measured scans.

The standard systems are build for a maximum product thickness of 100mm

systems are available for scan areas of 417mm x 300mm (~DIN A3),

417mm x 600mm (~DIN A2), 417mm x 900mm and 1200mm x 300mm. Full

scan size resolutions of up to 2400DPI for grey level and RGB evaluations and

of up to 6400DPI for limited areas (e.g. for bicycle tyres) are available.
